Recirculation Diode
Recirculation diodes are used to to return ("recirculate") any voltage that is higher than the supply voltage on the ground side of a inductor back to the supply. This is necessary because the inductor acts like a voltage source when the current is stopped, and its voltage can rises quite high for brief periods. This is called a 'flyback spike'. The flyback spike can damage components if it isn't effectively dealt with. The flyback spikes are particularly a problem with pulse width modulated (PWM) devices, primarily because there is a flyback spike on every cycle.
Frequent flyback spikes can also generate a lot of electrical noise that can interfere with VSS and ISS signals.

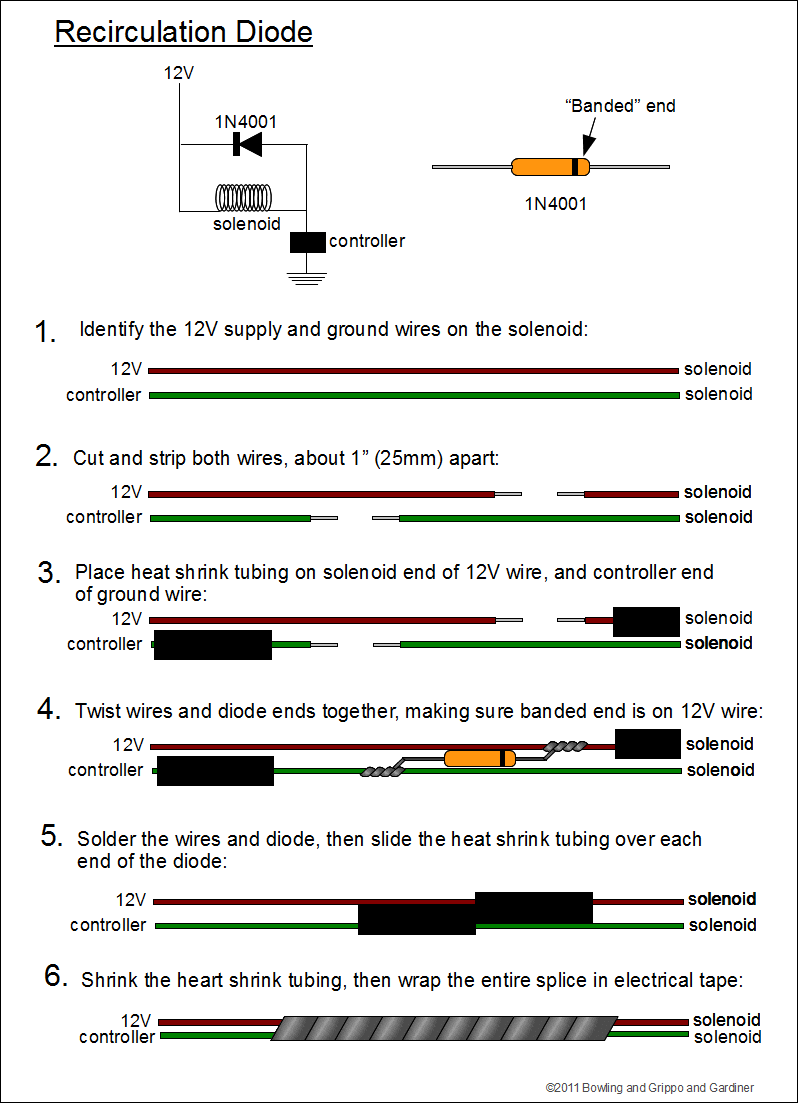

To implement a recirculation diode using the common 1N4001 diode, follow these steps:
